Apresentação em tema: "Enterprise Application Integration Paulo Marques Informatics Engineering Department University of Coimbra 2008/2009 7. Legacy Systems."— Transcrição da apresentação:

1 Enterprise Application Integration Paulo Marques Informatics Engineering Department University of Coimbra pmarques@dei.uc.pt 2008/2009 7. Legacy Systems 7.1. Integration Levels

2 2 What we have been discussing... System A Service Interface System B Service Interface System C Service Interface System D Service Interface Enterprise Service Bus Process Orchestrator Service Directory Service Oriented Architecture

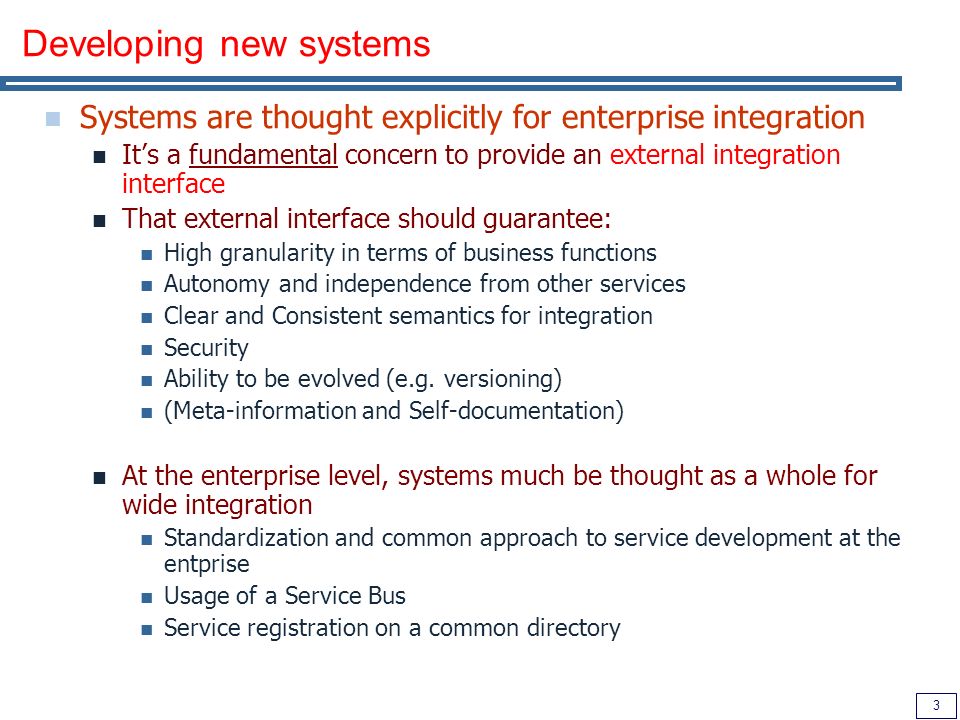

3 3 Developing new systems Systems are thought explicitly for enterprise integration Its a fundamental concern to provide an external integration interface That external interface should guarantee: High granularity in terms of business functions Autonomy and independence from other services Clear and Consistent semantics for integration Security Ability to be evolved (e.g. versioning) (Meta-information and Self-documentation) At the enterprise level, systems much be thought as a whole for wide integration Standardization and common approach to service development at the entprise Usage of a Service Bus Service registration on a common directory

4 4 According to this vision, the world looks like…

5 5 The real world...

6 6 BIG BALL OF MUD «While much attention has been focused on high-level software architectural patterns, what is, in effect, the de-facto standard software architecture is seldom discussed. (...) A BIG BALL OF MUD is a casually, even haphazardly, structured system. Its organization, if one can call it that, is dictated more by expediency than design. Yet, its enduring popularity cannot merely be indicative of a general disregard for architecture. (...)» B. Foote and J. Yoder, "Big Ball of Mud", in Proc. The 4th Pattern Languages of Programming Conference, Monticello, Illinois, USA, Sep. 1997 http://www.laputan.org/mud/mud.html

7 7 Ball-of-Mud regarding EAI

8 8 Application Types Simple Isolated Applications (silo) 1-tier application The interface may or may not be graphical; in many enterprise applications its not Business Logic User Interface Data Management

9 9 Application Types (2) 2-tier Applications Separation between data and business logic Business Logic User Interface Database

10 10 Application Types (3) 3-tier Applications Separation between user interface, business logic and data Business Logic User Interface Database

11 11 Thick vs. Thin Clients Business Logic Thick Client Database Business API Business Logic Thin Client Database Graphical-oriented API

12 12 Packaged Applications An application provider supplies customers with an application server capable of supporting a large number of business needs Most systems need to be heavily customized Plug-and-play of modules Integration with other systems is made through custom APIs or adaptors (e.g. Java JCA) Some examples: SAP, PeopleSoft, Oracle, Baan, Siebel, etc. ERP M1 M2 M3

13 13 Proxies and Wrappers Fundamental Concept: Hide the legacy application behind a proxy or a wrapper Typically, a proxy consists in automatically generated code that maps an existing interface into a more convenient one A bridge is a form of proxy that connects two different systems A wrapper consists in a piece of core (or interface) that hides an existing application, allowing it to be seen as an autonomous system Wrappers are normally hand coded When its not an application that is being hidden, but just an interface, that its called an adapter Business Logic GUI Database WEBSERVICEWEBSERVICE (e.g. a simple wrapper that maps a whole application using integration at the user interface level)

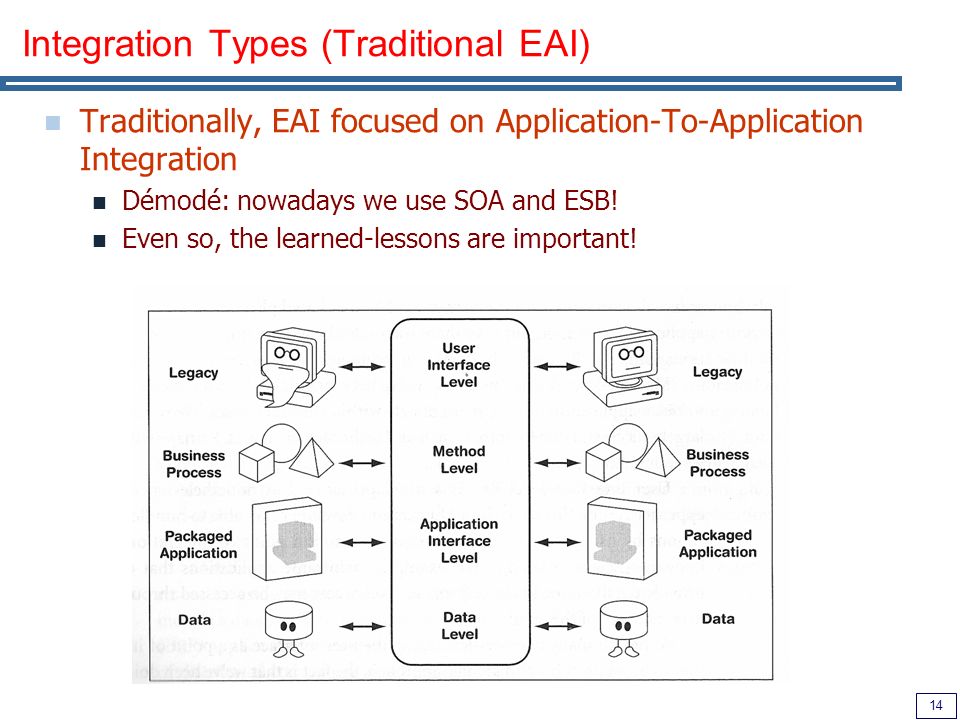

14 14 Integration Types (Traditional EAI) Traditionally, EAI focused on Application-To-Application Integration Démodé: nowadays we use SOA and ESB! Even so, the learned-lessons are important!

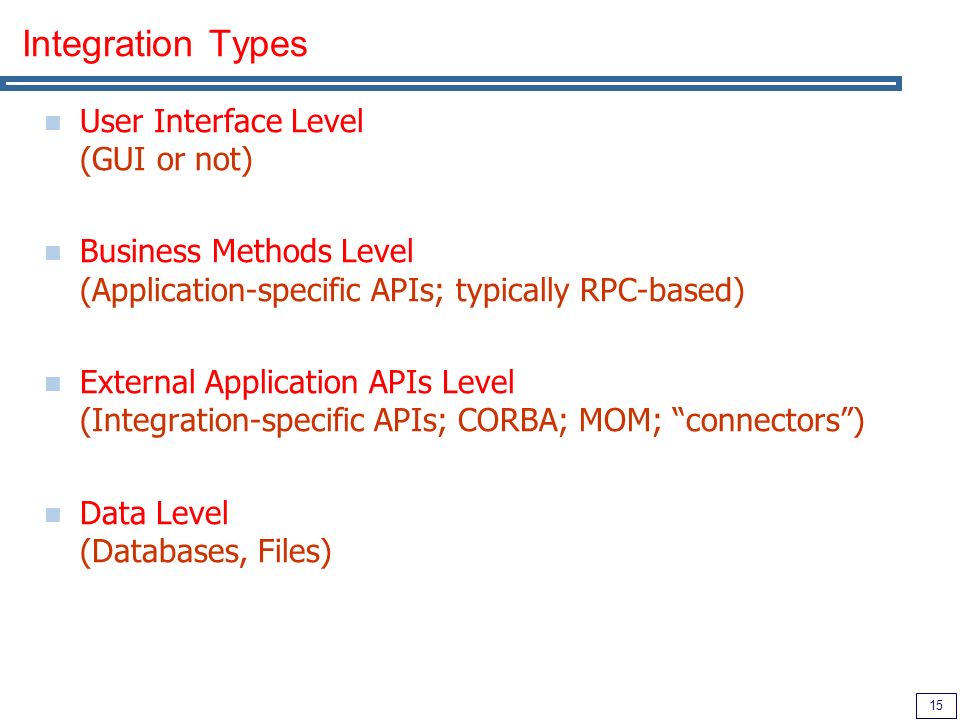

15 15 Integration Types User Interface Level (GUI or not) Business Methods Level (Application-specific APIs; typically RPC-based) External Application APIs Level (Integration-specific APIs; CORBA; MOM; connectors) Data Level (Databases, Files)

16 16 Screen-Scraping Integration systems using the user-interface

17 17 Screen-Scraping It can be simple or complex! Text-based Systems VT100, IBM 3270 (IBM mainframes), IBM 5250 (AS/400), etc. In many cases, an operation depends on navigating through several screens and menus. Problem: what to do if an operation fails? Lack of documentation and consistency Thick-client systems Its easier: you can remove the user interface and interact directly with the business logic Thin-client systems (web) Relatively simple Fragile (web-based interfaces change quickly)

18 18 Screen-Scraping (2) Some problems: Needs detailed knowledge of the application In many cases that are calculated fields which do not map into the business logic or corresponding databases Difficult to evolve and maintain Data extraction procedures: Static (line/column based) Dynamic (tag search based, regular expressions, etc.) As a general rule, it shouldnt be used while trying to integrate an application into a larger system. (Its too fragile.)

19 19 Integration at the Business Methods Level Some applications do provide external interfaces that can be used for EAI: Thick-client applications Applications thought for distributed systems Applications thought to be integrated Thick-client / Distributed Applications Method granularity problem Interoperability problem Documentation problem / reverse engineering Data integrity problem Security problem Application thought for being integrated Typically CORBA or DCE RPC interfaces Relatively easy to integrate

20 20 External Application APIs Level Packaged applications are thought with integration with mind... with modules of the SAME SUPPLIER In some cases, with modules or applications from other suppliers Characteristics Adequate granularity Correct semantics for security and data consistency In many cases they use MOM / CORBA (in others: COM/DCOM, Java RMI, XML-RPC, SOAP) In a lot of cases they use proprietary protocols In the Windows world... typically DCOM! Different business areas try to standardize different procedures: SWIFT: Banking operations FIX: Financial operations HL7: Medical Systems... Try to keep your system standard-compliant!

21 21 Data-level Integration Two common approaches Directly accessing the database tables! Export-Transfer-Import of data (file-based) Direct access to Database Tables ODBC, JDBC, or native BD driver In some cases, there are still non-relational BDs being used! Dangerous because of possible semantic violations and data inconsistencies Reverse-engineering / documentation problem Fragile to changes Many times, its used for data replication among databases Latency problem Consistency problem

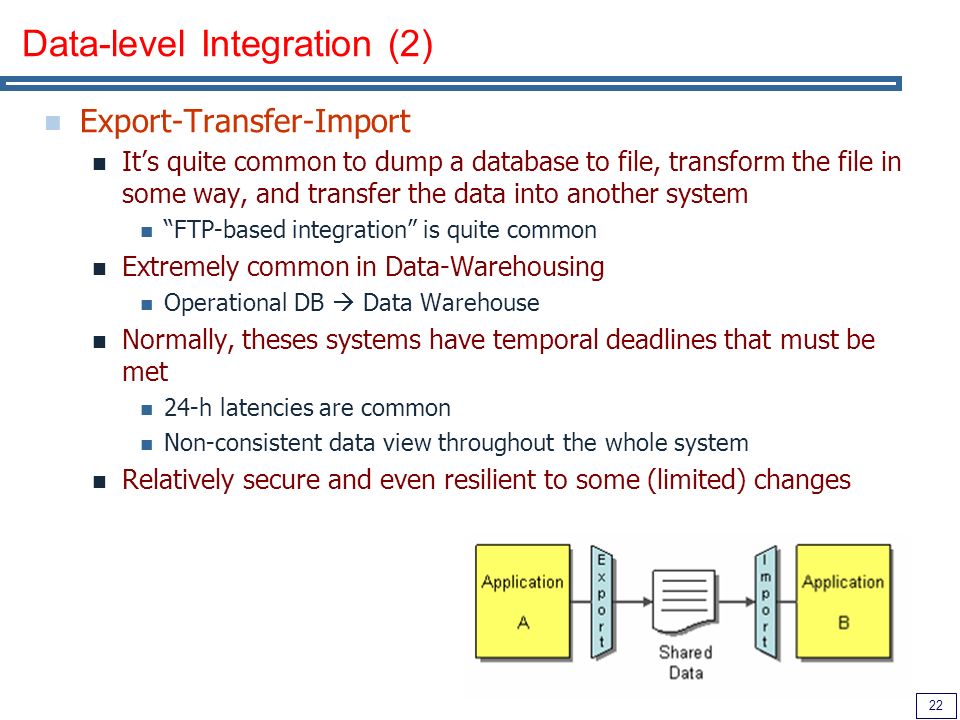

22 22 Data-level Integration (2) Export-Transfer-Import Its quite common to dump a database to file, transform the file in some way, and transfer the data into another system FTP-based integration is quite common Extremely common in Data-Warehousing Operational DB Data Warehouse Normally, theses systems have temporal deadlines that must be met 24-h latencies are common Non-consistent data view throughout the whole system Relatively secure and even resilient to some (limited) changes

23 23 EAI using files

24 24 Typical...

25 25 IMPORTANT CONCEPT: Evolving Systems!

26 26 Progressive Deployment Enterprise Service Bus Phase 1 Phase 2 Phase 3

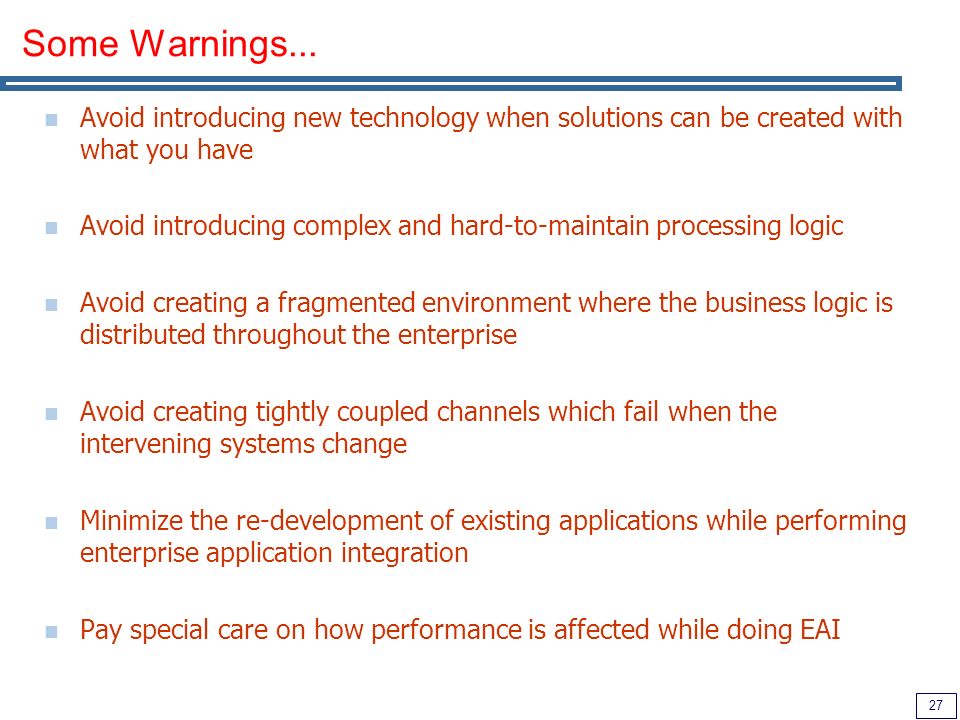

27 27 Some Warnings... Avoid introducing new technology when solutions can be created with what you have Avoid introducing complex and hard-to-maintain processing logic Avoid creating a fragmented environment where the business logic is distributed throughout the enterprise Avoid creating tightly coupled channels which fail when the intervening systems change Minimize the re-development of existing applications while performing enterprise application integration Pay special care on how performance is affected while doing EAI

28 28 Bibliography Enterprise Integration Patterns by Gregor Hohpe & Bobby Woolf Chapter 2 Enterprise Application Integration by David Linthicum Addison-Wesley, ISBN 0201615835, Dez/1999 Chapters 1-5 Service-Oriented Architecture: A Field Guide to Integrating XML and Web Services by Thomas Erl Chapters 8 and 9

29 Enterprise Application Integration Paulo Marques Informatics Engineering Department University of Coimbra pmarques@dei.uc.pt 2008/2009 7. Legacy Systems 7.2. Brief introduction to JCA

30 30 J2EE JDBC

31 31 J2EE on a larger world...

32 32 Problemas Sistemas CRM, ERP e legados não são... Bases-de-dados acessíveis via JODBC Código Java que suporte APIs Java Normalmente os fabricantes oferecem adaptadores... Específicos! Como é que se pode gerir, de forma uniforme: Obtenção e gestão de ligações? (E.g. criação de ligações e connection pooling) Propriedades transaccionais? (E.g. propagação transaccional) Segurança? (E.g. autenticação e autorização...)

33 33 Java Connector Architecture (JCA) Registados no servidor JNDI do servidor J2EE

34 34 Java Connector Architecture (JCA) Especifica um conjunto de contratos e interfaces entre: O servidor aplicacional e o adaptador Entre as aplicações cliente (que correm no servidor aplicacional) e o adaptador... é semelhante a um device driver Esses contratos cobrem: A obtenção e gestão de ligações A gestão de segurança (autenticação) Propagação transaccional Suporte alargado por parte da indústria Actualmente na versão 1.5 (JCA 1.5) http://java.sun.com/j2ee/connector/index.jsp

35 35 Visão alargada dos contractos

36 36 Quem escreve os adaptadores? Os fabricantes de sistemas alargados que desejem integração transparente dos seus sistemas com J2EE Programadores que desejem encapsular sistemas legados presentes na sua organização num sistema J2EE No entanto, tal só é tipicamente feito quando o software é reutilizado em diversos componentes (questão de custo vs. benefício)... Os programadores tipicamente utilizam os adaptadores, não os escrevem...

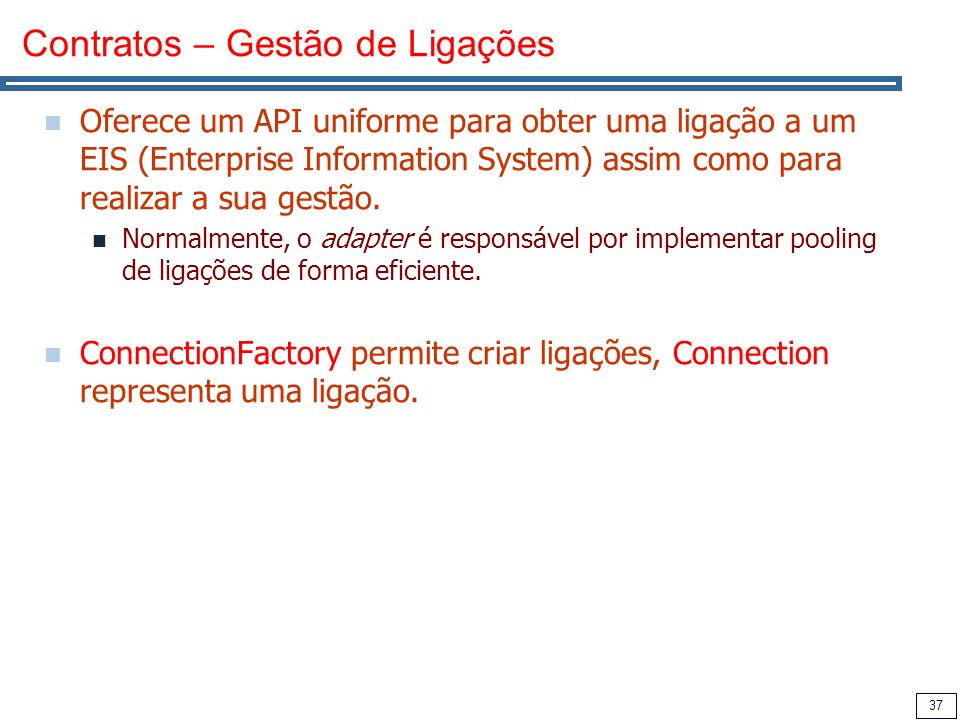

37 37 Contratos – Gestão de Ligações Oferece um API uniforme para obter uma ligação a um EIS (Enterprise Information System) assim como para realizar a sua gestão. Normalmente, o adapter é responsável por implementar pooling de ligações de forma eficiente. ConnectionFactory permite criar ligações, Connection representa uma ligação.

38 38 Contratos – Gestão de Transacções Garante a utilização e propagação de contextos transaccionais para o EIS. Novamente, é responsabilidade do adaptador fazê-lo correctamente Três níveis transaccionais: Nulo ou nenhum Transacções locais (i.e. apenas envolvendo um EIS) Transacções distribuídas

39 39 Contratos – Gestão de Segurança Permite a um servidor aplicacional ligar-se a um EIS usando um conjunto de credenciais correctas para um determinado principal Username/Password, Certificado X.509, etc. São suportados dois modos de autenticação: Container-managed Sign-on: as credenciais são pré- configuradas quando é feita a instalação da aplicação. Configured Identity: todos os recursos são acedidos com a identidade configurada Principal Mapping: o principal que está a utilizar a aplicação é mapeado num principal do EIS Caller Impersonation: o principal do servidor aplicacional é o que é utilizado na chamada ao EIS Credentials Mapping: semelhante ao anterior mas é feito um mapeamento de credenciais Component-managed Sign-on: o programador trata disso no código

40 40 Contratos – Client Connection Interface (CCI) Permite ao programador transferir e obter informação de um EIS de forma uniforme Algo semelhante ao interface JDBC – orientado aos dados O programador não necessita de o utilizar e o adaptador não necessita de o providenciar: é possível utilizar um API definido à medida O CCI divide-se em quatro partes: Connection Interfaces: o API para o estabelecimento das ligações Interaction Interfaces: Controla a execução do EIS Record/ResultSet Interfaces: Resultados obtidos do EIS Metadata Interfaces: Permite reflexão sobre metadata do EIS

41 41 Exemplo... Ninguém disse que era fácil ou bonito...

42 42 JCA 1.5 O JCA 1.5 resolve algumas limitações do JCA 1.0. Em particular... Em JCA 1.0 apenas é possível ter invocações J2EE EIS Em 1.5 é possível ter um Message Inflow em que um EIS envia mensagens assincronamente para uma aplicação J2EE. Essas mensagens são entregues a messaging beans correctamente configurados. Em 1.5 é possível propagar um contexto transaccional no sentido EIS J2EE (Transaction Inflow) Em JCA 1.0 a gestão do adaptador era pobre... Em 1.5 é possível gerir o ciclo de vida de um resource adapter: Lifecycle Management Contract (iniciar, parar, etc.) Em 1.5 um resource adapter por pedir ao servidor J2EE para realizar trabalho (e.g. monitorizar a disponibilidade de um certo servidor, de um componente, etc.): Management Contract Toda a gestão de threads associada corresponde ao servidor J2EE, não ao adaptador.

43 43 Questão... Compare a utilização de SOA baseada em Web-Services e as especificações WS-* com a abordagem JCA para integração de aplicações num application server. Em particular... há alguma vantagem nesta abordagem versus SOA/WS?... se SIM, qual ou quais?... se NÃO, então porque é que se utiliza JCA? Compare a utilização de SOA baseada em Web-Services e as especificações WS-* com a abordagem JCA para integração de aplicações num application server. Em particular... há alguma vantagem nesta abordagem versus SOA/WS?... se SIM, qual ou quais?... se NÃO, então porque é que se utiliza JCA?

44 44 Bibliografia J2EE Connector Architecture: Integrating Java Applications with Existing Enterprise Applications whitepaper at the Suns Developers Network, http://java.sun.com/j2ee/white/connector.html http://java.sun.com/j2ee/white/connector.html Dirk Reinshagen, Connect the enterprise with the JCA, Parts 1 & 2 in the JavaWorld Jornal, Nov/2001 and Fev/2002 http://www.javaworld.com/javaworld/jw-11-2001/jw-1121-jca_p.html http://www.javaworld.com/javaworld/jw-02-2002/jw-0201-jca2_p.html
