Work Breakdown Structure - Exemplos orientados a Deliverables

Apresentação em tema: "Work Breakdown Structure - Exemplos orientados a Deliverables"— Transcrição da apresentação:

1 Work Breakdown Structure - Exemplos orientados a Deliverables
WBS Work Breakdown Structure - Exemplos orientados a Deliverables André Baptista Barcaui, PMP 31/08/01

2 Exemplo 1. Plano de Vôo

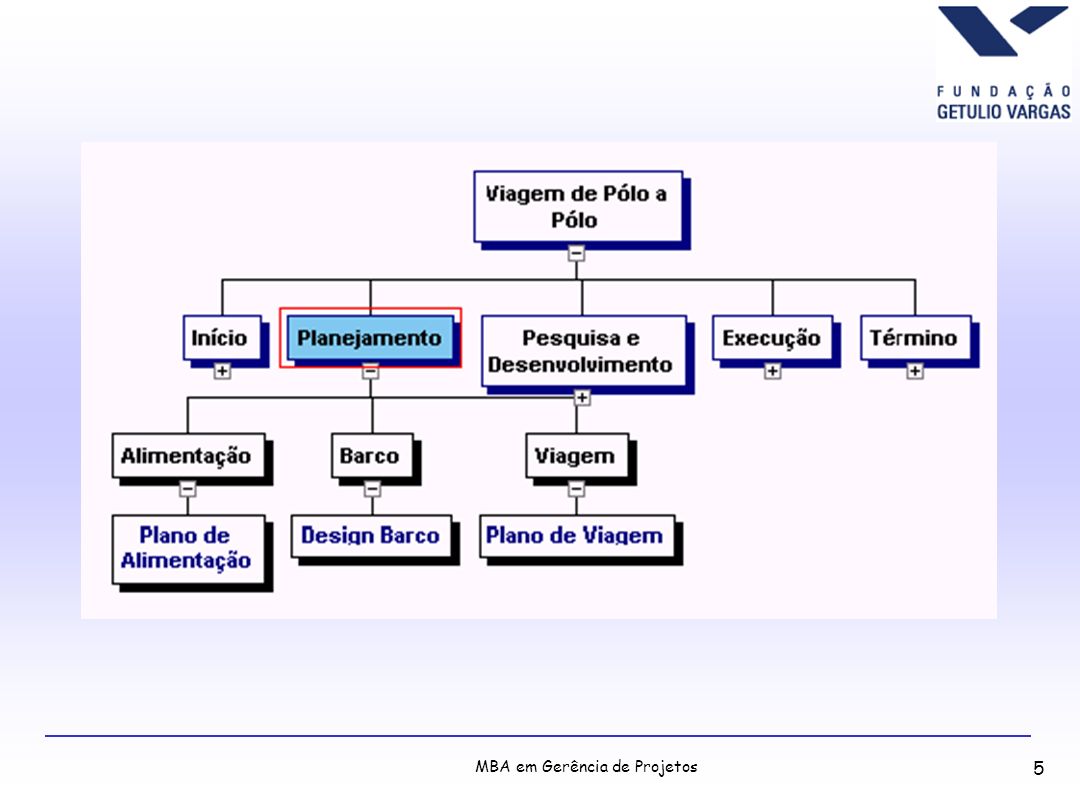

3 Exemplo 3. Amyr Klink

4

5

6

7

8

9

10

11 Exemplo 4. Pirâmides

12 Exemplo 5. Página HTML

13 METHODS AND PROCEDURES
Exemplo 6. Project Office METHODS AND PROCEDURES INFRASTRUCTURE MANAGEMENT RESOURCE MANAGEMENT TECHNICAL MANAGEMENT BUSINESS INTEGRATION LIFE CYCLE PROCESS TECHNIQUES COMMUNICATION & REPORTING STAKEHOLDER MANAGEMENT CHANGE MANAGEMENT ORGANIZATION & STRUCTURE SYSTEMS ASSESSMENT STANDARDS & METRICS FACILITIES & EQUIPMENT INDUCTION TRAINING CAREER PROGRESSION PERFORMANCE VENDORS & CONTRACTORS MENTORS AUDITS PLANNING SUPPORT LIBRARY & ARCHIVES TECHNICAL COMPETENCY POLICIES PORTFOLIO MANAGEMENT FUNCTIONAL INTERFACES CLIENT MANAGEMENT CONTINUOUS IMPROVEMENT PROJECT MGMT. OFFICE

14 Deliverable Oriented Task Oriented 1.0 Organizational Move
1.1 Network Move 1.2 Equipment Move 1.3 Personnel Move 1.1. Network Move 1.1.1 Server Move 1.1.2 Backup Systems Move 1.1.3 Workstation Move Word Processing Workstation Move Data Entry Workstation Move Customer Service Workstation Move Data Entry Workstation Move Sun Workstation Transfer IBM Workstation Transfer Mac Workstation Transfer Deliverable Oriented 1.0 Move to new facility 1.1 Concept Phase 1.2 Development Phase 1.3 Implementation Phase 1.4 Termination Phase 1.3.1 Move Workstation 1.3.2 Move Office Equipment 1.3.3 Move Personal Effects Move Workstations Move Word Processing Workstations Move Data Entry Workstations Move Customer Service Workstations Transfer Sun Workstations to new facility Transfer IBM Workstations to new facility Transfer Mac Workstation to new facility Task Oriented
